Applications

• Part-off
• External threading
• External threading solid profile
• Turning
• Groove and turn

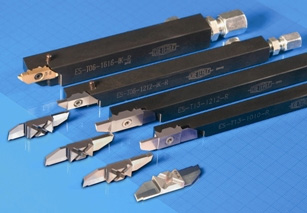

• Inserts:
• SAAK
• SAGS
• SAGSV
• SAEL and SAFW
• SALP

Special advantage:

• Easy and quick changing of inserts from the user´s side.
• Toolholder can stay in the machine.
• Stop periods of your machine reduced to a minimum.

We have made tools for automatic lathes for more than 40 years now. When developing and designing our tooling we are always taking into account the special requirements of the machines and the wishes of our customers.

As a specialist you will see that our insert tooling range consists of sophisticated high-quality tooling systems for many different applications.

Our advantages:

• All our tool-holders are hardened an tempered, which guarantees for high precision of shank and insert seat and for extended tool life.
• All usual shank sizes are available.
• We specialize mostly in ground high-quality carbide inserts for fine turning operations, with highest changing precision.
• The small radii on the cutting edges make our ground inserts suitable for many applications.
• For high alloy materials and stainless steels we can offer special carbide grades and special coatings.
• Inserts can be changed easily with standard Torx keys.

Minifixsystem

• Boring from diam. 0,7 mm
• Internal grooving from 2,0 mm

We can supply extremely small boring tools:

• from diam. 0,7 with solid carbide inserts
• from diam. 3,5 with small carbide inserts
• from diam. 4,5 with 3-edged carbide inserts zu liefern.

We use modern, high-performance coatings. Our small inserts for diam. 3,5 and 4,5 are also available out of solid PCD or CBN. You will find that our tools are very competitive regarding technical quality and price-performance-ratio.

Our tools are the solution for your machining problems. All tools are stock standard.

Our product range:

• Micro precision tools offer a comprehensive range of efficient micro tools out of solid carbide.
• You can find high-precision solid carbide tools in micro dimension for all applications.
• Mini twist drills, very small reamers and mills
• This constitutes a tool range out of solid carbide for difficult materials such as special plastic or hard materials, non-ferrous metals and titanium.

Our drill-holder BOH-WK can be used on all carriages. They are suitable for rigid and adjustable boring operations and relieving operations.

This variable system can be used for right-hand and left-hand cutting.

Special Drilling Tools

• Helical Step Drills
• Flat Form Drills
• Cone Drills and Core Drills
• Form Core Drills
• Special Reamers

On our modern and precise grinding machines we can produce even small series of solid carbide tools economically, such as step drills, flat drills, tube bits, or reamers with special dimensions according to your specification. These tools can be provided with a high-quality lapped finish, produced with fine diamond tooling.

Production tolerances can be kept as small as 1 - 2 µm, if requested.

Screw machines require very small broaching tools. We can offer a wide range of different broaching toolholders, and also the broach insets in various forms, such as hexagonal or special profiles according to your specifications.

INO-CUT tool-system for boring and profiling for bore from 7,8mm

System FH and BFH

We produce round and flat form tools for all machine types, out of HSS or carbide-tipped! All materials used are of exceptional, well-established quality. We grind our profiles optically or by CNC, on sophisticated Swiss or German machines.

Advantage:

With the help of a magnified profile drawing we can control the profile on the tool visually or by camera.

Our own distortion correction software, which takes into account clearance angles and top rake angle on the tool, makes it possible to correct distortions when producing the profile drawing and the CNC-programme.

Profile drawings are being plotted with a precision that can not be achieved in a manually produced drawing.

Summary:

Each profile tool we produce gets its own specific production number, which is printed onto the tool. If you to re-order and give us the production number, we have instant access to all required data of the tool.

Your advantages:

• Shortened delivery time!
• Rationalized production - form grooving is faster than turning!
• Easy control: With a precise form tool it is enough to measure one spot of the component only.
• Constant quality.

Turning

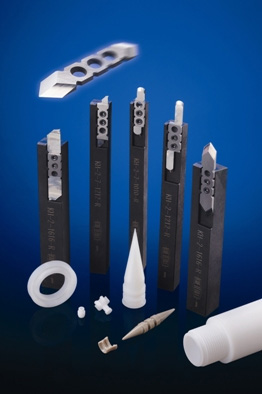

The great diversity of plastic types which have also the most diverse cutting characteristics pose cutting problems for many plastic machining operators.

Dieterle recognized the problem and developed insert types for all plastic requirements, for soft and elastic plastics to rigid, tenacious and worn-out plastics.

These different kinds of inserts are shown together with the appropriate tool-holders in the catalogue Universal System For Plastic Machining.

There can be found sharp cutting blades as well as sharp long turning inserts which have big cutting depths. Also coatings, especially diamond coatings come in to operation when machining plastics. Herby we achieve a significant tool-life.

System ROTOWIBEX

For serial manufacturing of threads for screws out of titanium or similar materials for the medical and implant technology DIETERLE offers the Rotowibex tool.

Rotowibex is a tool holder for at least 6 or more inserts ground according to the thead profile. Rotowibex is available from stock for all usual types of turning machines.

HSSE and solid carbide

Helical tooth pattern, relief-ground for Schütte - Gildemeister - Traub - Index and other lathes Regrinding service for all thread milling cutters, fast and economical

Thread chasers out of HSS/E and carbide

ground, with 2 teeth for external threads, diam. 42 and 52 for internal threads

With these tools you can produce flats, square forms, hexagonal or octagonal forms on smallest components.

Most CNC machines can turn in axial direction, so that the required length of the polygon can be reached by turning.

If you can not turn in axial direction, as is the case with most cam controlled machines, we stoc carbide insert blanks for polygon grooving in different widths, which can be adjusted to the width your component requires.

Our stock includes standard polygon cutters for various machine types, such as Tornos, Citizen, Star, Index, Traub, Manurhin, Gildemeister, or Schütt.

System DIE / SSDA

The V-shaped prism at bottom and top of the inserts ensures an exact fit and perfect changing precision

You have the choice among two toolholder types:

• Solid version (SSDA-System)
• tools with changeable clamps and support blades (DIE-System)

Advantages of solid tools:

• Reduced height
• Also suitable for machines that offer limited space, e.g. sliding head machines

Advantages of tools with changeable support blade and clamps:

• In case of a crash you can change the support blade and/or the clamp, instead of having to buy a complete new toolholder.

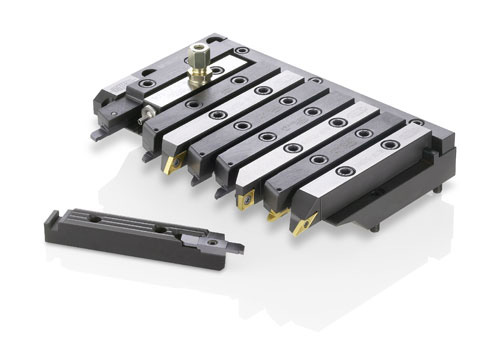

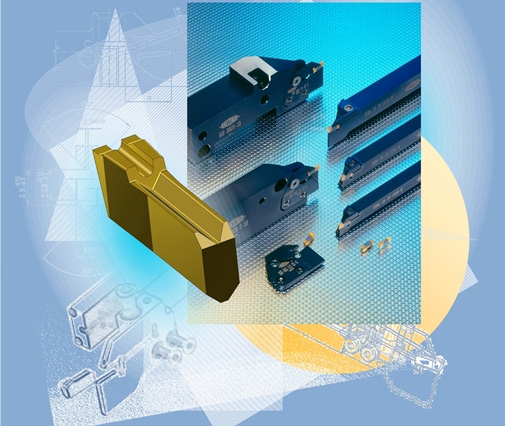

The System SSDA is a very rigid and economical multiple-purpose part-off system.

HSS- And Carbide-tipped Tool-holder-bits

We have an extensive stock of tool-holder-bits for the production of turned parts.

• Carbide-tipped turning tools
• Carbide-tipped grooving tools
• Carbide-tipped form grooving tools
• Carbide rods, round, square or rectangular
• Double-cone-shaped HSS and Tantung rods
• HSS- or carbide-tipped form tool-holder-bits for Index and Traub machines

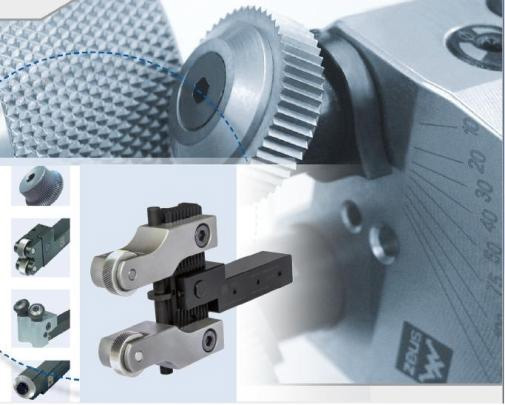

Turned parts often have knurling profiles.

There are two production methods:

1. Form knurling

2. Cut knurling

• APPLICATIONS
• TOOL CHOICE
• MACHINE TYPES / TOOL CHARACTERISTICS
• APPLICATION TECHNIQUES
• FORM KNURLING TOOLS>
• CUT KNURLING TOOLS

• SPECIAL TOOLS
• MARKING TOOLS
• KNURLING WHEELS
• BURNISHING ROLLS
• MARKING ROLLS / ENGRAVING TECHNOLOGY
• TECHNICAL APPENDIX

We have an extensive stock of carbide guide bushes for all common CNC sliding head machines and cam-controlled machines.and Also

• Intermediate sizes
• Helical slot bushes
• Solid guide bushes (not adjustable), also available with special bore dimensions
• Collets with carbide inset
• Revolving guide bush holders type NEUKOMM, ex stock

Our stock includes collets for all machine types shown above.

Collets with special dimensions can be ground to the required bore diameter, quickly and economically. Also, we can wire erode special profiles at short notice.

Your advantages:

• Great variety of tools
• Improved performance
• Reduced machine idle time
• Easy and quick tool changing
• The system for complex components

If you have to part off short components, and if you use a synchronised holding spindle, you need to have long and narrow part-off blades.

Our Churchill part-off range offers extreme depths, with regrindable or throw-away blades in various grades and coatings.

A very wide range of toolholders makes it possible to tool any type of turning machine, providing maximum stability and extended tool-life.

For More Details Click Here

Long service life, shortest processing times and an excellent surface quality - these are just three advantages of our thread milling cutters.

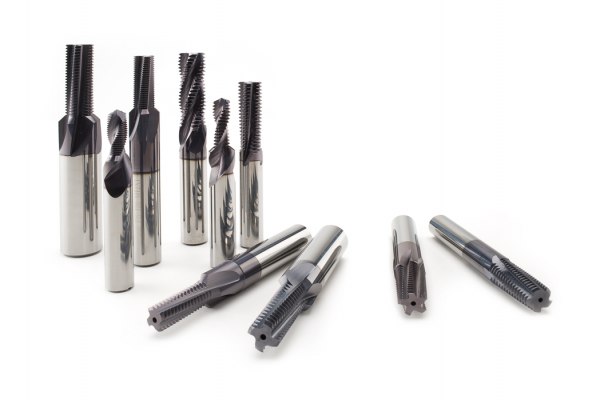

DO YOU NEED SPECIAL THREAD MILLING CUTTERS? NO PROBLEM! WE ANALYZE YOUR PROCESS OF MACHINING AND WORK OUT A COST AND QUALITY-OPTIMIZED SOLUTION.

These tools are intended for workpieces in large serial production. The high durability and the very high surface quality of the manufactured threads are a characteristic of these tools.

Depending on the workpiece / material/ lot size, we can offer the tried and tested shell type cutter with exchangeable inserts (GFG-WP) for processing nonferrous metals or our shell type thread milling cutter with exchangeable milling inserts (GFG-WFE) for processing all kinds of different steel materials.

There are several possibilities available to save production costs, which have different effects on overall costs.

By combining different work processes in one tool, the total processing time can be lowered - independently of technological limitations. JBO combination tools are adapted to meet the specific needs of the customer and their workpieces.

RU

HSS THREAD CUTTING DIES TO DIN EN STANDARDS

• For machine and manual use
• For cutting threads in steel up to approx. 800 N/mm² tensile strength
• Different versions for cutting a wide range of materials

AUTOM

THREAD CUTTING DIES FOR AUTOMATICS

• With greater number of enlarged clearance holes. Hence more cutting edges for longer die life and higher quality threads.

MS

THREAD CUTTING DIES FOR BRASS

• Enlarged clearance holes prevent chips crowding, with spiral entry (gun nose) for threads ≥ 3 mm diameter.

VA

VA THREAD CUTTING DIES

For machining stainless, through hardening, surface hardening and other steels up to 1.200 N/mm2 tensile strength, as well as aluminium alloys that produce short chips

• HSSE, lapped
• Nitrided to prevent cold welding
• Fine chips due to more clearance holes and thus more cutting edges, and the extension of the chamfer to 2 P

LL

LONG LIFE-HIGH PERFORMANCE THREAD CUTTING DIES

Field of application as for VA thread cutting dies

• HSSE (ASP 30) lapped
• Nitrided to prevent cold welding
• Very fine chips due to maximum number of clearance holes and thus still more cutting edges, and the extension of the chamfer to 2.25 P
• Exceptionally long die life

LD

THREAD PLUG GAUGE GO/NO GO

• Dimensions according DIN 2280 until major-Ø40mm

LD-TICN

THREAD PLUG GAUGE GO/NO GO

• HSS-TiCN-coated

GD

THREAD PLUG GAUGE GO

• Dimensions according DIN 2281-1
• above major-Ø 40 mm DIN 2281-2

AD

THREAD PLUG GAUGE NO GO

• Dimensions according DIN 2283-1
• above major-Ø 40 mm DIN 2283-2

LD CONICAL

THREAD PLUG GAUGE GO/NO GO

• with step limit

For More Details Click Here

At any given point in time, we carry sufficient stock to cater to the immediate needs of our customers. We believe in “TIME IS MONEY”. We also offer “Turnkey” solutions which include in-house design and manufacturing of fixtures, cutting tools (both specials and standards) in addition to part programming and cycle time prove out, thereby ensuring the lowest CPC.

We have successfully executed orders all over India, especially for tractor transmission parts and two wheeler engine (5C) components. Our customer base includes pioneers in Automotive, Defence, Valves, Aerospace Engineering, and Farm Equipment.

We believe in “FIRST TIME RIGHT, EVERY TIME RIGHT”. In order to provide the best of solutions to our customers, a team of 25, including support staff, are on the job, to ensure highest quality is delivered to our customers in the shortest possible time.

Work Holding Products

Kumaras offers wide range of special work holding equipments for I.D & O.D holding applications.

Standard expanding mandrels like between centre application / face plate mounted with draw bar operation are available for grinding & turning applications.

Special tailor made work holding solutions based on application can also been provided.

An engineering team with experience of over 100 man years works extensively right from the design stage till the proving of the product to the total satisfaction of the end user.

Rotating Toolholders Rotating Toolholders

• Collet Chucks

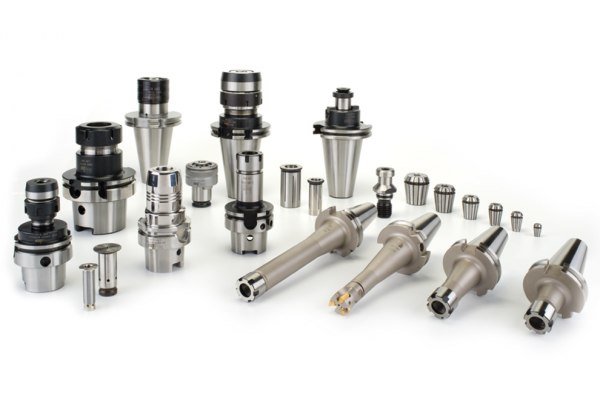

Kumaras offers the largest variety and highest quality standard Collet Chucks.

ER, TG and DA Collet Chucks on BT/DV/CAT & HSK tapers Metric & in Metric & Inch version available. Straight shank extensions are available as well.

ER collet chucks guarantee run out accuracy of 0.005 mm or 0.00002” w.r.t.Taper.

TG & DA Collet chucks guarantee run out accuracy of 0.008 mm or 0.0003” w.r.t .Taper.

ER Lock nuts are supplied with special surface treatment to the improve wear resistance & reduce the friction.

Pre-balanced collet chucks are supplied in balancing grades G6.3 or G2.5 on request.

Kumaras offers the largest variety and highest quality End Mill Holders on BT/DV/CAT/HSK shanks.

Short/Long gauge lengths in Metric & Inch version available.

Size range - 6 - 50 mm in metric & 1/8 to 2” in inch version.

The bores are controlled in H6 class & R/O is within 0.005 mm / 0.0002” w.r.t taper.

Pre-balanced End Mill Holders are supplied in balancing grades. G6.3 or G2.5 on request.

• End Mill Holders

• End Mill Holders

Kumarasoffers the largest variety and highest quality Shell Mill Holders on BT/DV/CAT/HSK shanks.

Size Range- 16-60 mm in metric & 1/2” to 2” in inch version.

The run out of pilot dia is within 0.008 mm or 0.0003” w.r.t taper

Kumaras offers the wide variety of drill chucks & Morse Taper Holders for drilling application.

The Drill Chuck capacity ranges from 1 mm to 13 mm and are supplied integral with various tapers.

• Drill Chuck & MT Holders

Based on years of experience in manufacturing quality machine tools. Our speciality in import and export business, KUMARAS Quality Machine, has been recognized as a mature and innovative supplier since 2004.

Main Products: *Frames - Milling Machine Frames, VMC Frames, Lathe Frames and Bridge Type Frames

• The specific configuration see TOM-TCK36L Horizontal CNC lathe-ray machine configuration
• the company always performs product improvements, it retains the right to change the technical parameters of the power-ray machine, when to change without notice.

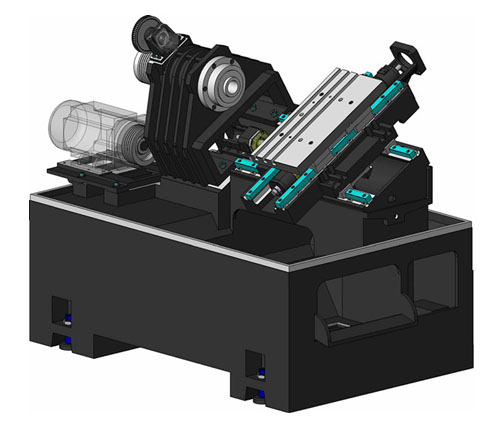

Slant Bed Lathe

•

  TOM-TCK45H

•

  TOM-TCK45H

•

  TOM-TCK45H

•

  TOM-TCK783

•

  TOM-TCK453

•

  TOM-TCK455

•

  TOM-TCK455

•

  TOM-TCK454

•

  TOM-TCK454

•

  TOM-TCK453

Frame

•

  TOM-HVM106

•

  TOM-DZ500

•

  TOM-Z540B

•

  TOM-Z540

•

  TOM-HV1060

•

  TOM-DX600

•

  TOM-DX750

•

  TOM-DX1220

•

  TOM-DX5050

•

  TOM-L1062B

•

  TOM-L1150

•

  TOM-L5641

•

  TOM-L6645

•

  TOM-L8050

•

  TOM-LM6050

•

  TOM-LM8050

•

  TOM-L1062

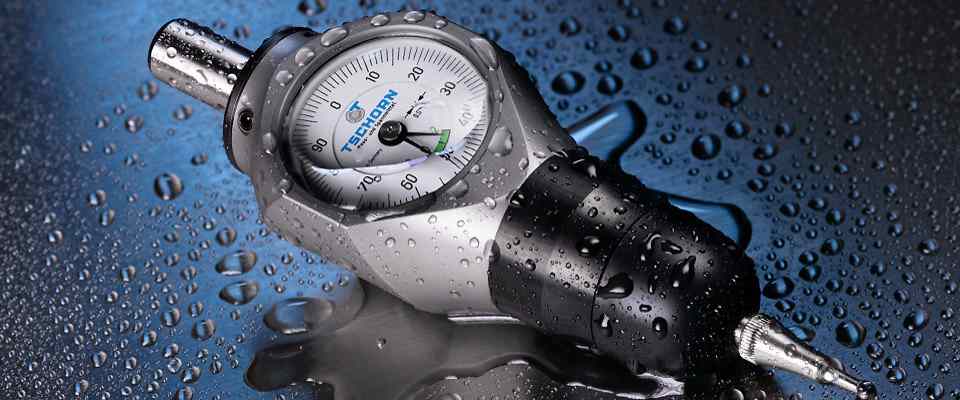

The 3D-Tester stands out with its robust structure and slim and attractive design. Its precise and versatile capabilities enable fast and easy calculation of work piece reference points and lengths. Probing is possible in all axle directions (X/Y/Z) at the same indicator resolution. As soon as the indicator is at “0”, the vertical axis is exactly on the edge of the work piece.

3D-Tester VIplus

The 3D-Tester VIplus (visual plus) is easier to read, even at large machines.The 3D-Tester stands out with its robust structure and slim and attractive design. Its precise and versatile capabilities enable fast and easy calculation of work piece reference points and lengths. Probing is possible in all axle directions (X/Y/Z) at the same indicator resolution. As soon as the indicator is at “0”, the vertical axis is exactly on the edge of the work piece.

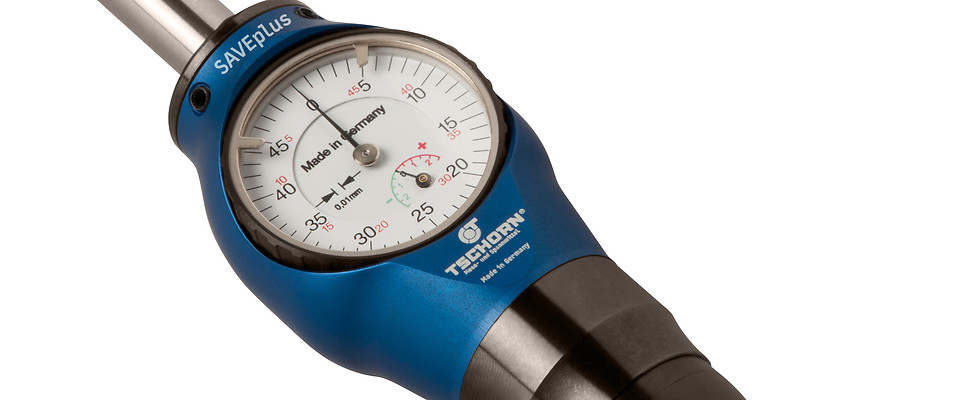

3D-Tester SAVE plus

The 3D-Tester SAVEplus is as small and slim as the 3D-Testers SLIMplus and VIplus. The SAVEplus is the inexpensive 3D-Tester model. The main differences are

• the SAVEplus is not waterproof (no seal)
• the SAVEplus will be delivered without test certificate (but of course the 3D-Tester SAVEplus is tested in the same way all other 3D-Testers are tested before shipping)
• no serial number is added

3D-Tester DREHplus

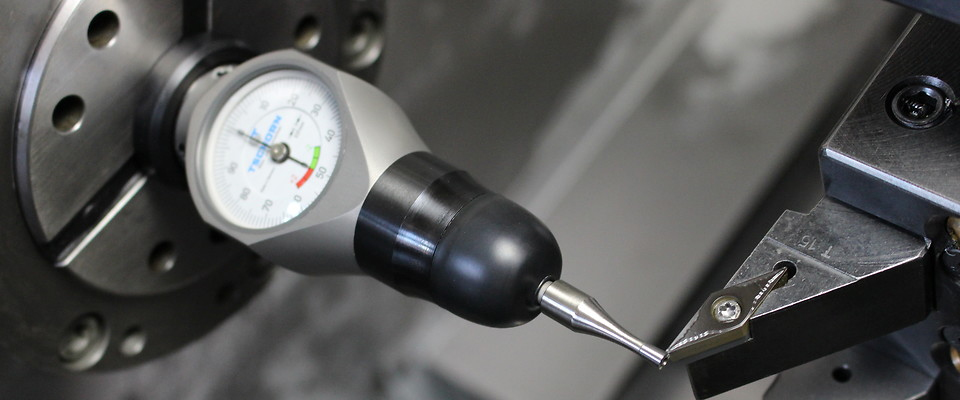

With the 3D-Tester DREHplus you can measure tools on lathes in all axes X, Y and Z.

• Innovative probing technology: the conical probing corpus has been adjusted to needs on lathes
• Measuring of tools in all axes: X, Y and Z
• Slim and clear because of its innovative design
• Time-saving and precise as tools can be measured directly in the lathes with the DREHplus
• Cost-saving as no expensive additional equipment is necessary

Innovative probing technology

The DREHplus has got unique probe tips with an innovative conical probing corpus made from hardened tool-steel.

The conical probing corpus has precisely been developed for the 3D-Tester DREHplus. When probing or reaching the zero position, the outline of the conical probing corpus is exactly on the symmetry axis. Because of the geometrical form of the conical probing corpus, also cutting plates with radiuses and/or anglescan be probed at any point of the probing corpus.

Catelogue 3D-Taster

Catelogue Download Here

view site

Poliangolar

What it Does

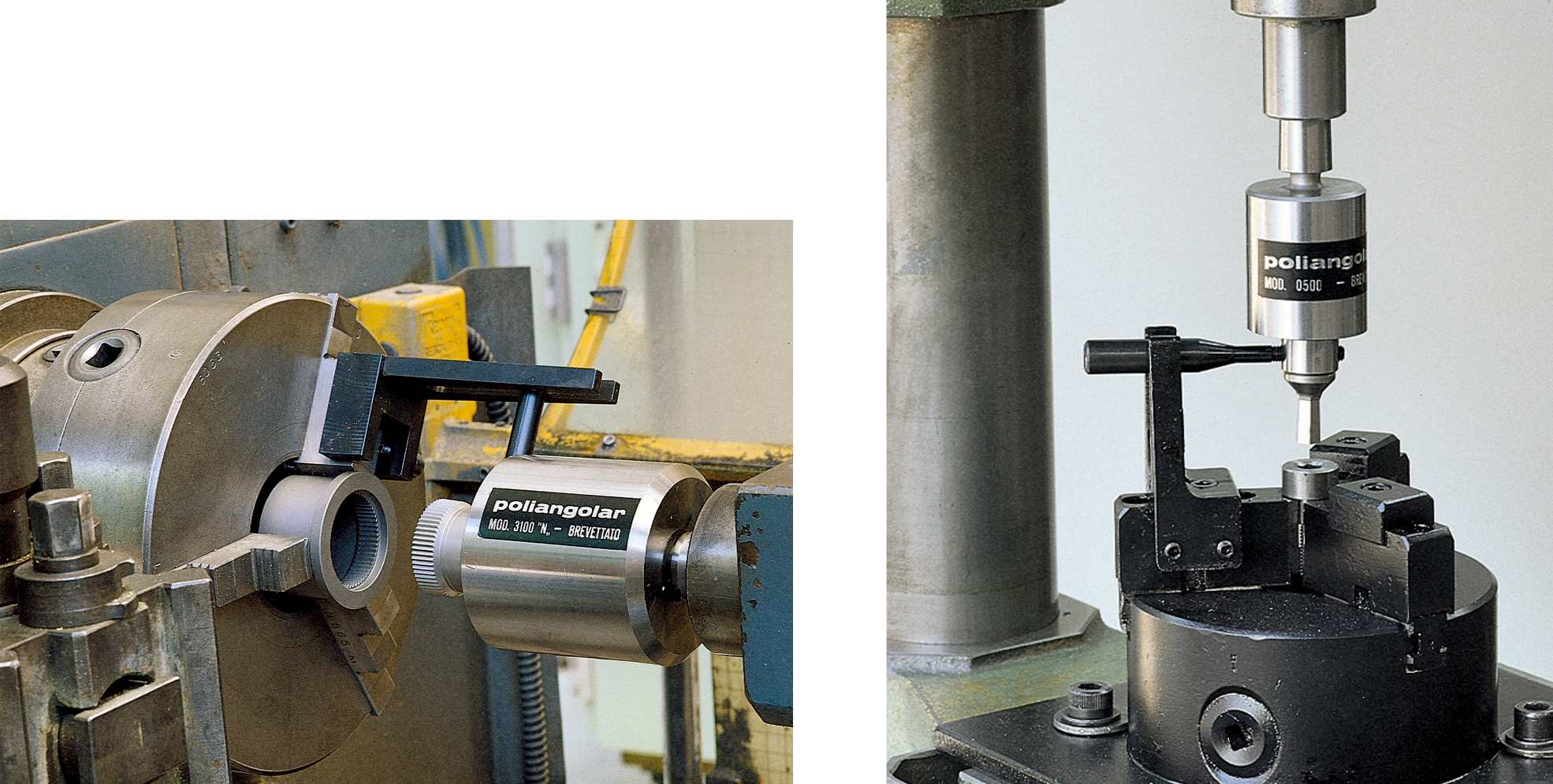

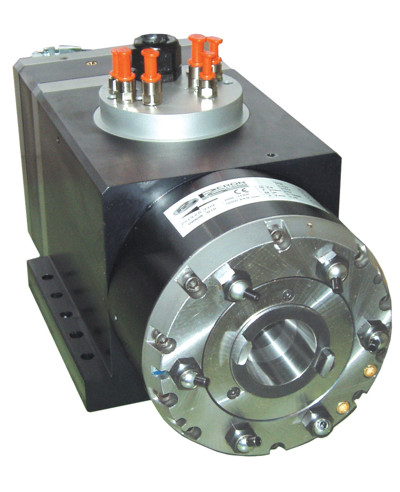

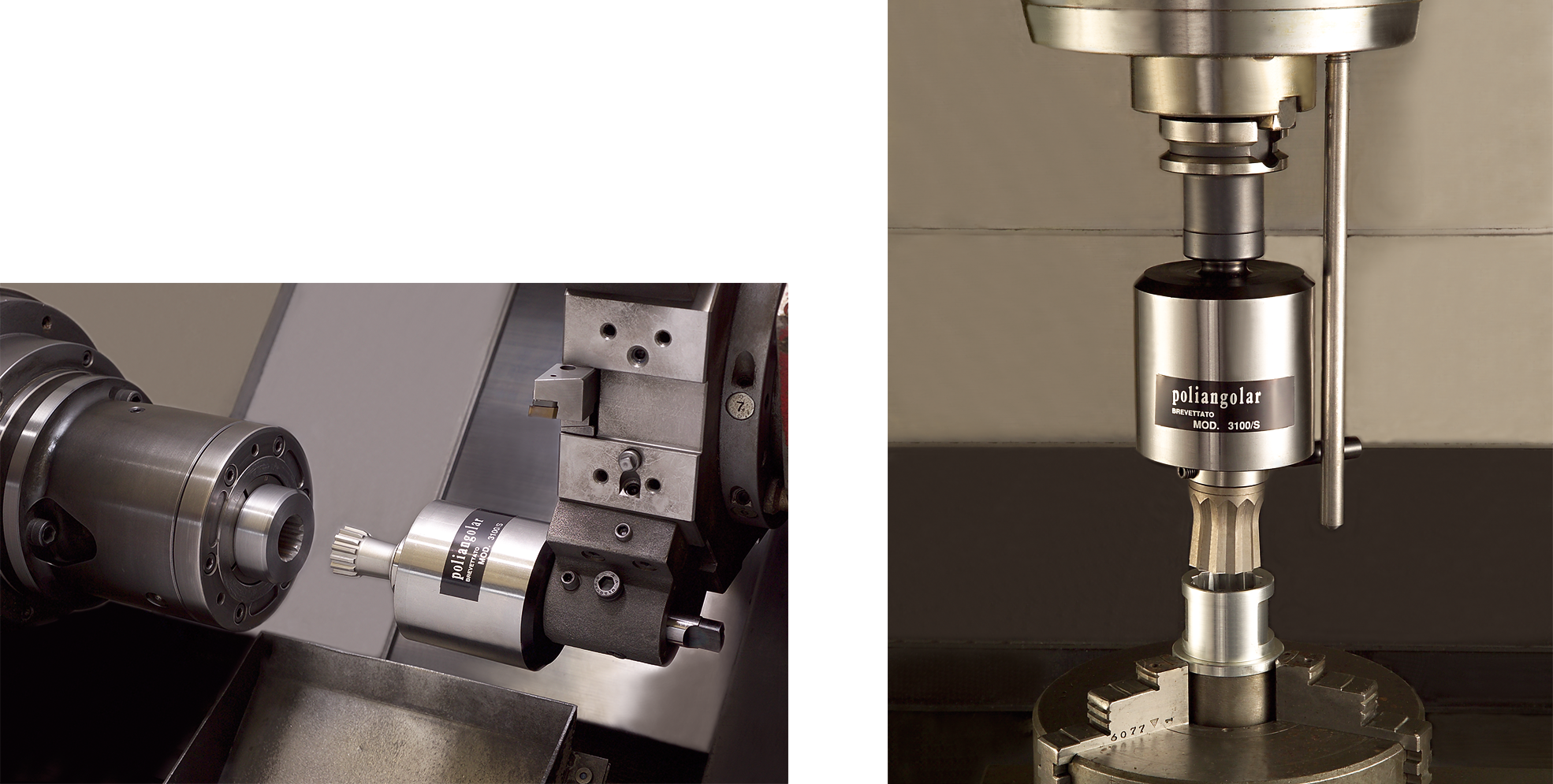

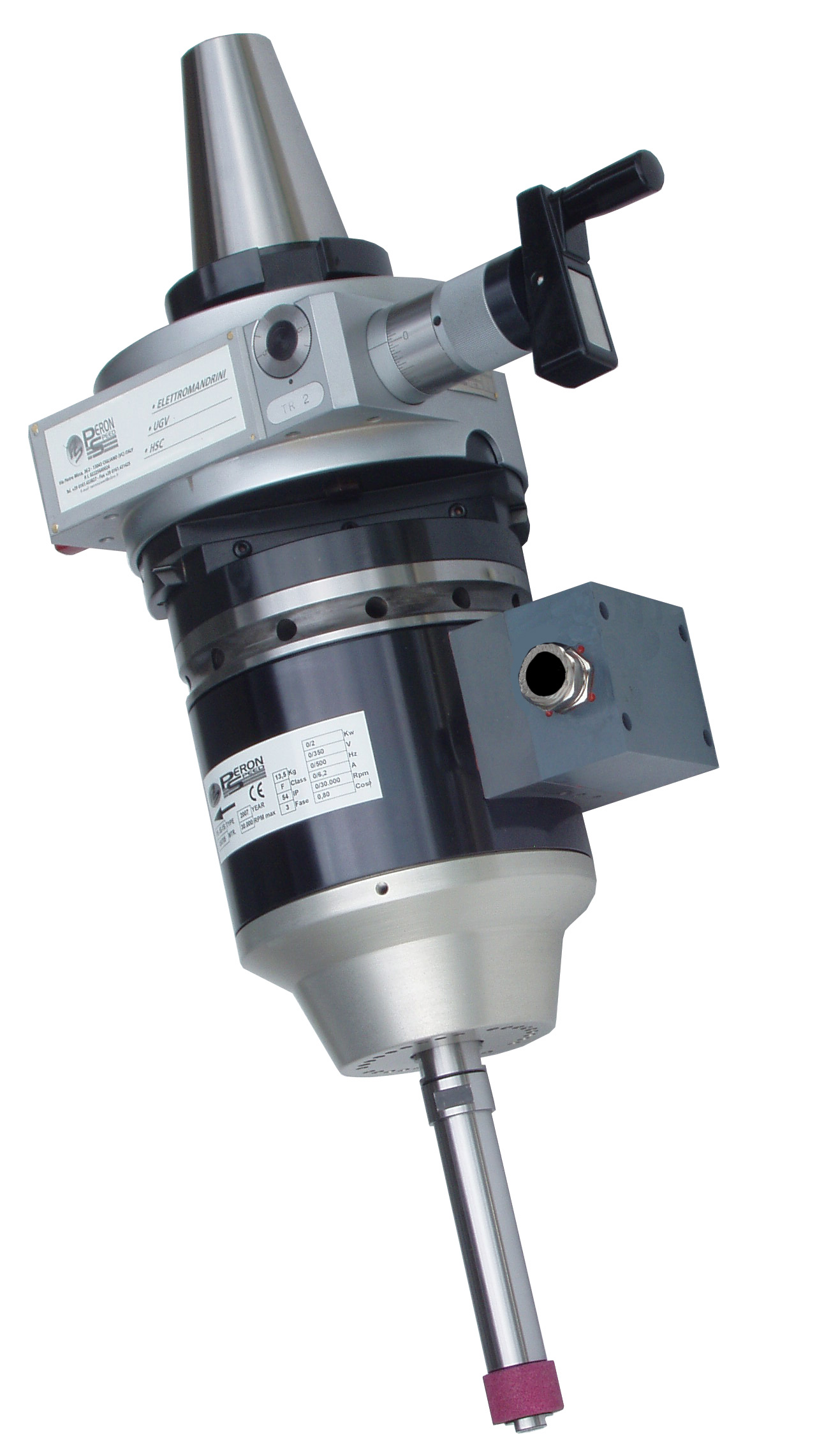

Poliangolar is a rotary motion device suitable to machine blind or through holes and external profiles with regular and irregular polygonal sections. In addition to the standard profiles, such as hexagons, square and Torx, on request our toolholders are used to produce special serrations, involute and toothed splines as per DIN 5480 - DIN 5481 - DIN5482, SAE J500, ANSI B 92 1st 1976 CUNA etc...Poliangolar is able to machine steel, aluminium, stainless steel, brass, titanium, bronze, plastic, and other alloys.

What it is Made

Poliangolar is made from hardened steel and the shank is induction tempered and then precision ground. The tool spindle is fitted with high precision bearings suitable to support axial and radial thrust.

How It Works

Poliangolar's tool spindle is mounted in the body of device with a specific angular orientation to gives to the tool a “hunt” rotary motion.Prior to broaching operation, a pre-hole should be drilled having slightly larger than the inscribed circle for a regular polygon, or a pre-slot in the case of an irregular polygon. Holes of different sizes and shapes can be successfully cut by simply replacing the cutting tools, which will have the same across section as the desired profile.

The attachment is supplied with a lever which should be used whenever the polygonal slots require a particular angular position. The Poliangolar is so simple to use because no templates or fixtures are required for it's efficient operation.

On What Machines

Our toolholders can be installed on any machine tools, traditional, CNC lathe and transfer, allowing to complete the workpiece without further operations. The range of equipment is available with standard shank (M.T., cylindrical, Weldon), also ISO / DIN (VDI, HSK, BT-MAS) and/or special shank on request.

Dragging lever's Use

Where possible, the use of dragging lever is always recommended, it is used to:

• Position the tool in order to orient the side or edge with respect to a particular reference
• Prevention of, in particular in the case of deep grooves, the twisting of the tool and possible spiralling of the required profile
• Avoids putting the tool under unnecessary stress, jeopardising both the machining itself as well as the finishing of the part and, as a result, the life of the tool.

The supplied lever may be replaced by any high strength screw or other suitable equipment and must be screwed into the threaded hole opposite to the tool blocking dowel.

Electrospindles

Series PS-TC / PS-TCV

MILLING ELECTROSPINDLES

Electrospindles with automatic tool change for CNC. With Encoder ( series PS-TCV ) or without Encoder ( series PS-TC ).

Series PS-ES

ELECTROSPINDLES OF SQUARE SECTION FOR PARTICULAR WORKS ON CNC MACHINE TOOLS AND BIROTATIVES HEADS

This series of electrospindles is particularly indicated for all those applications where is required the assembling of the spindle on a surface or inside a bracket, for example in the 5 axis machine tools or on the tilting heads. For this type of Electrospindles our first target is the flexibility in the project which allows us to find or adapt a solution according to the specific customer’s request.

Series PS-A

MILLING ELECTROSPINDLES

Electrospindles of new generation for machine tools and CNC to be used in the finishing of moulds, models ecc. Compact, strong, they are equipped with innovative technical solutions ( hybrid ceramic bearings greased by permanent grease without any kind of maintenance, compensation of the axial dilatation, inductive motors with high performances with thermal switch for protection and small sizes) to obtain very good results in the work operations also in case of long and heavy use.

Series PS-JG

HIGH SPEED HEADS FOR PLANETARY GRINDING OPERATIONS

High speed heads for planetary grinding operations. It is a range of accessories of high precision to grind holes ( from Ø 2 till to Ø 300 and more if they are used together with platform U-TRONIC D’ANDREA.), profiles, cams ecc with manual or automatic radial movement according to the models.

Series PS-M

MILLING ELECTROSPINDLES

This serie of Electrospindles is very compact and suitable for operations of milling, drilling and general metal working where a very high precision of the execution is necessary. Of simple conception, these Electrospindles are supplied with manual tool change for application on simple production machine tools where is not necessary a frequent substitution of the tool.

Series PS-RG

GRINDING ELECTROSPINDLES

Electrospindles for grinding operations with traditional grindstones or in CBN for applications on traditional machine tools or CNC. Of small sizes, they have HF motor with high performances and especially, hybrid ceramic bearings lubricated exclusively with a minimal air-oil system which guarantee a long life time

Series PS-M-T

MECHANICAL BELT DRIVEN SPINDLES

Spindles of simple conception for milling, drilling and grinding operations. They are equipped with hybrid ceramics bearings greased by permanent grease without any kind of maintenance or with minimal air-oil system for high speed rotations. The rotation movement is obtained by mechanical transmission. The tool holder is done by high precision collets or by arbor ISO or HSK.

Application

The high precision and unsurpassed quality of Peron Speed electrospindles made them widely used in the aeronautics, the watch industry, moulds and precise mechanic industries. They are also used as secondary or main spindles on CNC, 3-5 axis machine tools, grinding on vertical lathe, internal and planetary grinding.

Featuring wide range of high-quality used CNC lathes, vertical and horizontal machining centres and grinding machines Due to our business relationship to our customers for so many years and because of fundamental market experiences, we are pleased to be in the position to offer a range of used machinery in good condition.

We takes pride in its high-quality machinery and provides accurate test charts. A wide spectrum of modern demonstration-ready CNC machine tools refurbished by skilled engineers. Our services include: consultation, sales, installation, training, assistance in purchasing CNC machine tools.

Services We Provide

Selling

Our main business combines both new and pre-owned industrial machinery. Our prices remain competitive and we are blessed with recurrent referrals and repeat buyers. With our almost 30 years in the industrial equipment business, the reputation and integrity of our company is well known.
